Anderson’s High-Shear Extrusion System
The Dox Extruder and Expeller Press

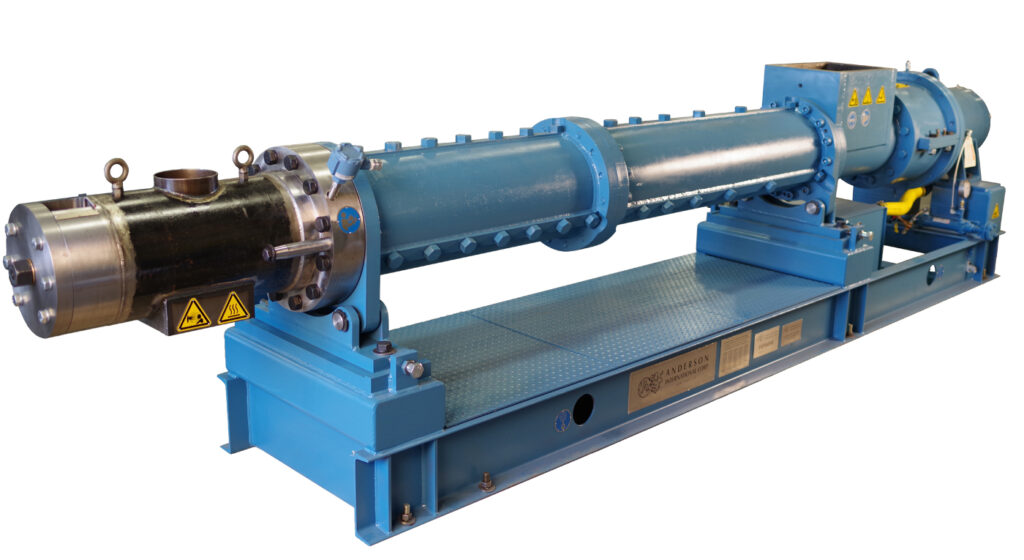

The Dox (Dry Oilseed EXtruder) is designed to mechanically shear, cook, and dry the material being processed for improved oil recovery.

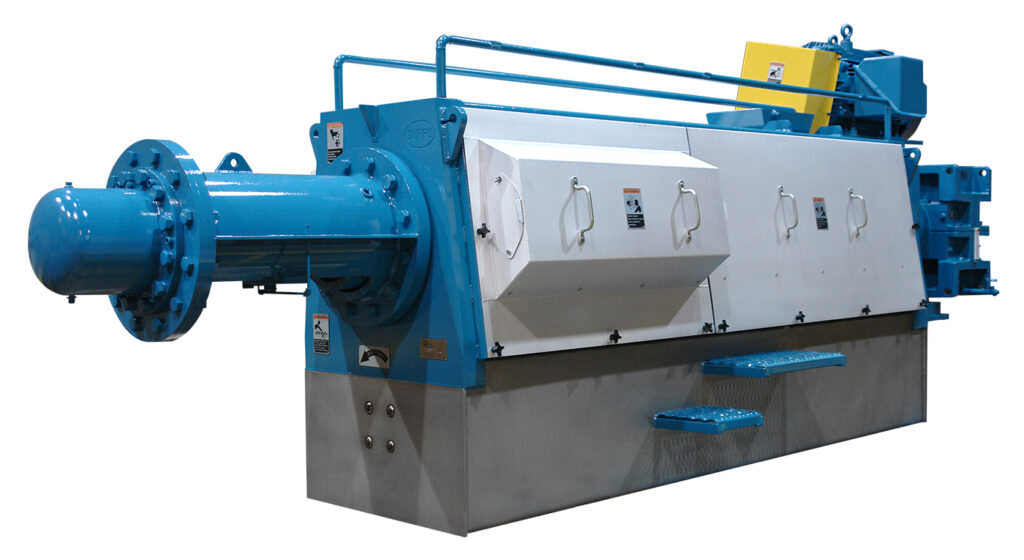

The Anderson Expeller can press over 100 metric tons per day (MTPD) in a single machine with residuals as low as 5%.


This high-shear system uses mechanical energy to shear, cook, and dry soybeans, eliminating the need for external heating or steam. This method has several advantages: it reduces the number of machines required, takes up less space, and is particularly useful for small-scale processing operations with limited access to affordable steam sources.

Dry extrusion not only improves efficiency and lowers energy costs but also maximizes the protein and energy content of the soybeans. The cooking process retains all of the original fat, resulting in full-energy soybeans that are rich in protein and provide abundant metabolizable energy from the oil.

Request a same-day quote for the 12 Inch Dox™ High Shear Extrusion System

Anderson’s high-shear extruder system reduces the number of steps for oilseed preparation, doubles pressing capacity, increases profitability, and extends the life of your oilseed equipment.
anderson-enrique-diaz

“The Anderson Extruder doubles the capacity of oil presses and replaces expensive steam-heated cooking vessels. It’s win-win for profitability.”

Enrique Diaz,
Oilseed Processing Specialist,
Sales Director


Featured Article

As The Plant Protein Market Takes Off, Extrusion Technology Proves Crucial

Good news for oilseed processors: the plant protein market is heading towards an all-time high with a growing emphasis on nutrition and the environment.

Processors have the potential for high profits as the market expands, but these gains are dependent on meeting specific conditions of the growing consumer demand.

Not all established processing methods pair with these latest consumer demands. One method of processing – high-shear extrusion – stands out for its ability to meet the needs of health and environment-conscious consumers.


“We have presses older than most of our competitors have been in this industry.”

Eric Stibora, Oilseed Processing Specialist, Vice President of Sales & Marketing


Three things you need to know about profitability for soybean oil processing

1. Traditional oilseed preparation is inefficient

One of the most common concerns in soybean oil processing today is the number of steps required to prepare the oilseed for a press. Each step is an additional cost that impacts profitability.

  1. Shearing to rupture the soybean’s oil-bearing structure and create frictional heat
  2. Cooking to break down anti-nutritional factors and stabilize proteins
  3. Drying to remove excess moisture

Traditional oilseed preparation requires a series of machines using energy-draining equipment like steam batch cooking vessels and dryers. This increases initial investment costs, maintenance costs, downtime, and requires more space.

2. The Dox High-Shear Extruder combines oilseed processes in a single machine

The Anderson Dox Extruder is designed to mechanically shear, cook, and dry soybeans without expensive steam-heated cooking vessels. The Dox deactivates harmful enzymes, flash-dries excess moisture, and cooks the proteins for more efficient pressing – all in one machine.

3.The Dox generates profitable results

  • Doubles the capacity of the expeller press
  • Replaces expensive steam-heated cooking vessels
  • Lengthens the life of the pressing parts (Average rebuild of a press without an extruder is 22-24 weeks.  Average rebuild of a press with an extruder is 48-52 weeks.)
  • Reduces meal oil residuals to under 6%

RATED PERFORMANCE

Model

8″ Dox & Dox Hivex

12″ Dox & Dox Hivex

Connected HP

150-200

300-400

Capacity (MTPD)

40-60

100-150


High-Shear Extruder Resources

Learn more about high-shear extrusion for soybean oil processing
